*Internet cable connector

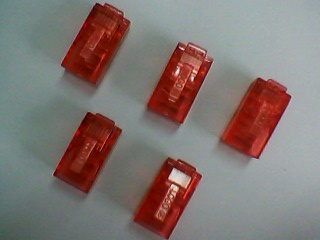

*Red color

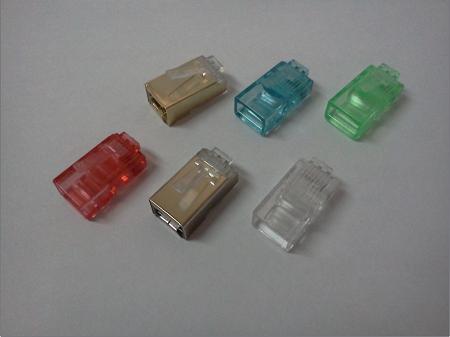

*Modular plug
*Welcome inquiry!
*a. These modular plug are designed according to FCC68, and conform to CE standard, theya are appliable to 24~28 AWG multi-core cable and single core cable.
b. Electrical specification:
*Dielectric strength test 1000V/DC
*Insulation resistance: greater than 500Million Ω
*Contact resistance: greater than 20 Milli Ω
c. Gold-plating inspection
*Per MIL-G-45204C standard specification, Type II (minmum 99% gold content)
*Grade C+(KNOOP HARDNESS RANGE 130-250)
*Grade 1(Minimum 50 microinches thickness)
d. Electro-plating test instrument Infrared test instrument
e. Mechanical properties
*Long time pull test - tension between cable and socket at least 20 lb(89N)
*Durable test - Insert and pull test greater more than 2000 times
f. Material and surface treatment
*PA material fire-protection rating 94V2 & 94V0 (UL No.E50075)
*High tensile copper alloy { JIS C5191R-H(PBR-2)} standard material
*Electroplating specification-100 microinches nicel plating
