*Part name: Encapsulate plastic parts

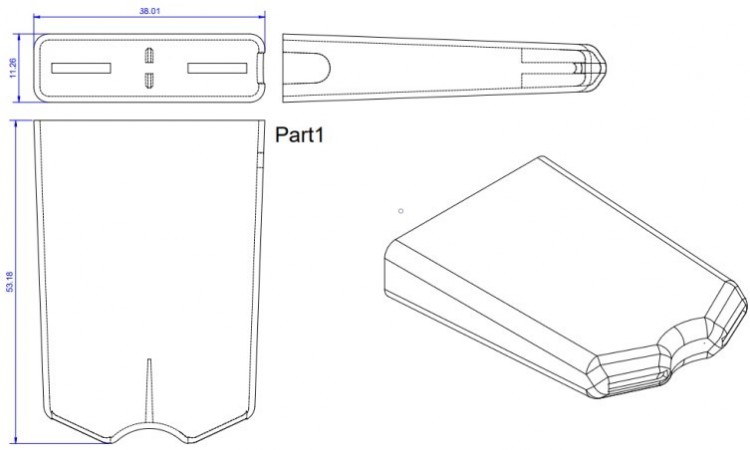

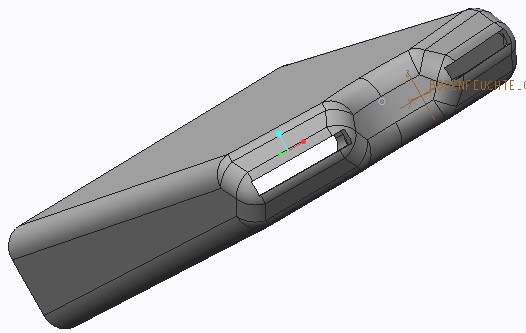

Part1 (body part)+part2(accessory part)
2 parts are linked by a small 'wire' of plastic to break off in further produciton
*In material: PP (Polypropylene, moderate viscosity property is important)

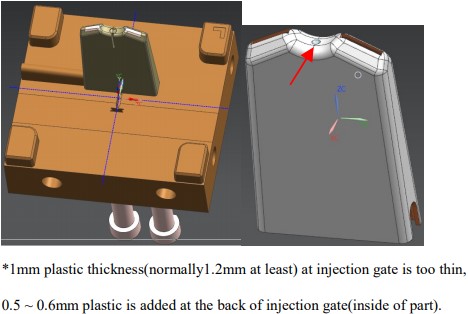

1mm thickness plastic wall
*Black outer surface with eroded fine texture, PU(polyurethane) varnish will be sprayed on in German factory Pick & Place.

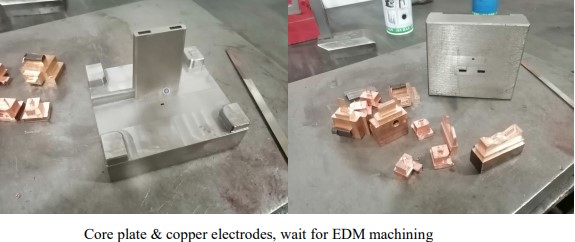

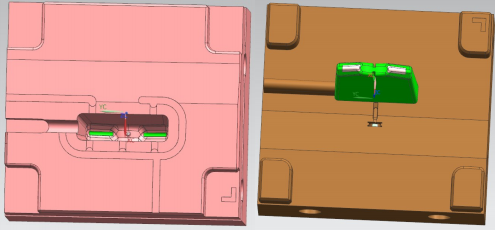

Cavity plate & Core plate

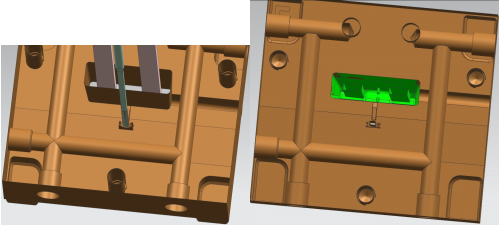

3pcs flat ejector pin
Considering the long lenth of body part, 2pcs flat ejector pin, not stripper plate, are used to eject this part.
*Finally, 2pcs flat ejector pin pushing part from inside top of body part is cancelled, 2pcs ejector pad are used to push the part from 2 longer bottom edges.

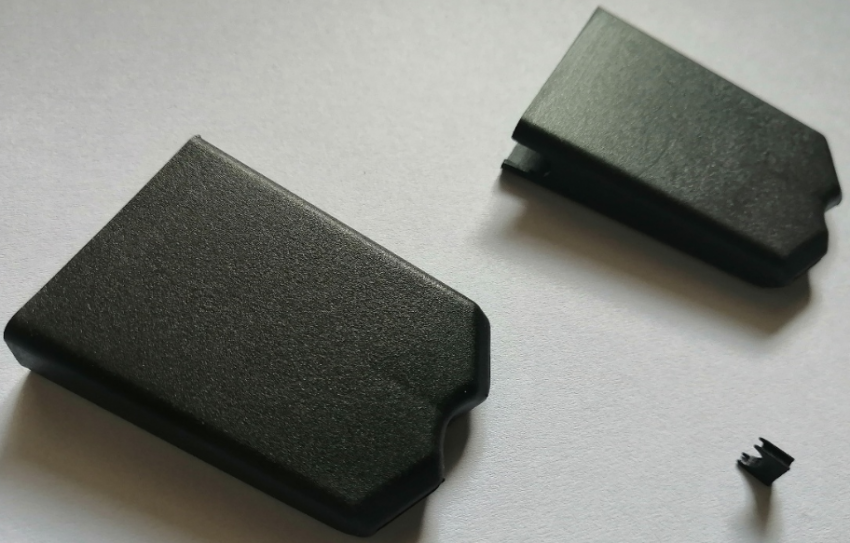

Parts from 2nd mold test
