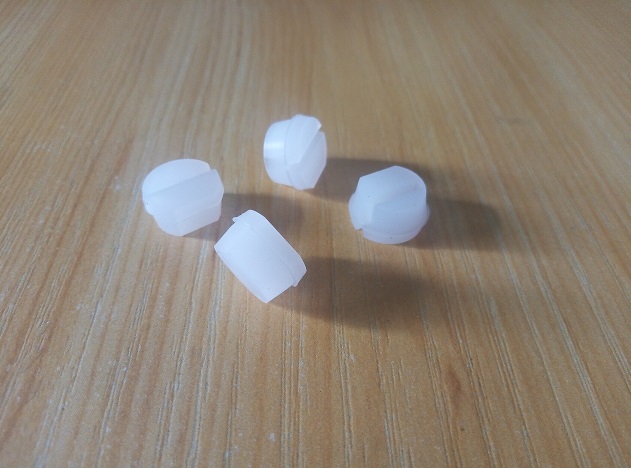

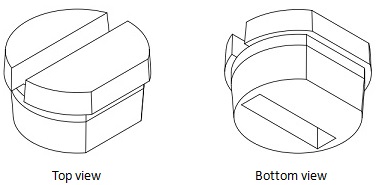

*Part Name: Silicone Rubber Sealing part
*In material: Shore A 10 or 20 solid silicone rubber
*Natural color - translucent (half transparent)
*Special note for application: A PCB with additional 1mm height components should be slide through the slot of part, this part should be in relatively soft material
*Production process: compression molding
*Vulcanizing (moulding) time: 150 seconds

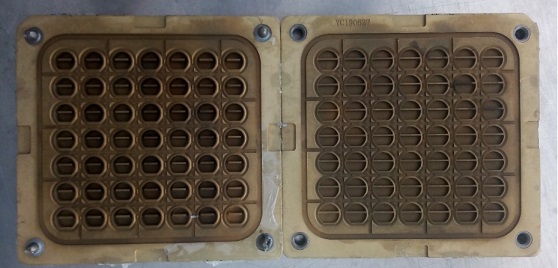

*Brass tooling：1x49 cavities
*2nd Jul., 2019

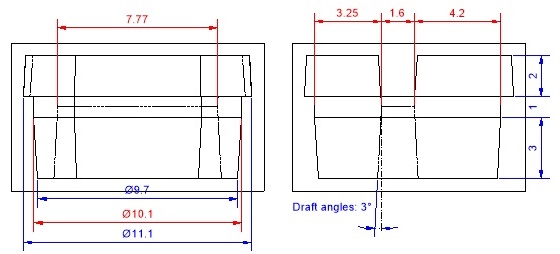

Considering the soft and elastic character of Shore A10 ~15 silicone rubber, draft 3°is not realistic in tooling making and compression molding process, there is variation to this. Following dimensions are critical for sealing function and shouldn't be compromised on final part:
1) Minimum dimensions of central slot should not be MORE than 7.77 x 1.6 mm
2) Dimensions at the 1mm vertical section (without draft) should not be less than stated. (this point would be second in importance while it can’t be taken care of)
*Tooling test (4th Jul., 2019)
Customer comments to part samples (17th., Jul.):
1.) First impression of quality is good
2.) Fit well with other parts in assembly
3.) Functionality test follows, final result would probably be after summer vacation(5th., Aug.)
