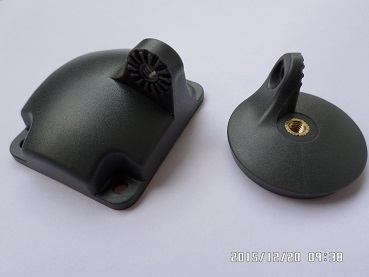

*Plastic part name: Mounting bracket parts A & B ; Part color: grey or black with high gloss
backside of parts have fine EDM texture
*Application: vehicle electronic device
*Material: PC(80%) + ABS(20%)

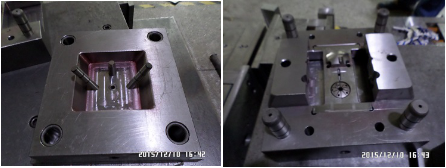

*Tooling: 1x1 + 1x1 cavities

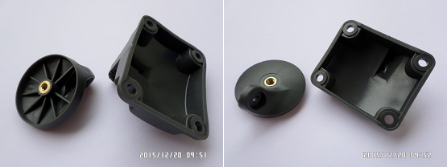

*M4 copper insert（in material Cu Zn 38 Pb2, specialized for plastic injection molding use) is molded in part B, the upper knurl, middle slot and lower knurl structure of copper insert keep it in position stably.

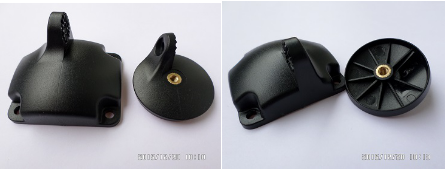

*Top part set in black color, below part set in dark grey color (RAL 7015# slate grey, most close to Pantone 7540#)

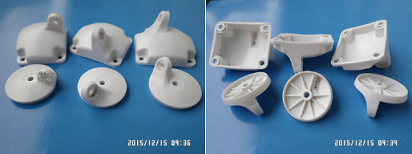

Customer say: "Hello Dennis! We have evaluated test shots and we are satisfied to the quality. Pantone 7540 matches perfectly with our other products. So lets proceed as we planned and start the production."
"We have received parts and are satisfied to those. ......We want also that this will be a start for a long term co-operation with Your company. ...... we are constantly developing our products and we will contact You in early stage what comes to injection moulded parts"-Pekka Karkkainen Mar. 3rd, 2016
A.
B.

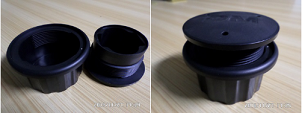

A Group（previous project example 1):
1)Plastic part with thread pattern
2)Application: for sensor/signal transmitter instrument series
3)In material: Nylon(80%) + fibre(20%)
B Group(previous project example 2):
1)Plastic part with metal insert molded inside
2)Application: for baby carrier(left), for medical device(right)
3)In material: Nylon(80%) + fibre(20%)(left part), PP(right part)
Tooling layout for all parts：1X1 + 1X1 cavities
Usage of ejector sleeve: there is through hole or blind hole at one position of plastic part, at that position must use ejector system to push the part to release tooling, that ejector system consists of ejector sleeve and ejector pin. ejector sleeve is fixed on ejector retainer plate, ejector pin is fixed on bottom plate, while the front section and back section of tooling are opened, the ejector sleeve push the plastic material out of the ejector pin which it wraps, through hole or blind hole is formed.
