Sliding rail
Pre     next

Sliding rail

  • Description
  • Make an Inquiry

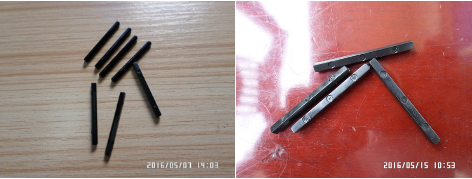

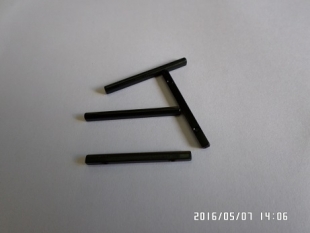

*Plastic part name: Sliding rail

*In material: POM

*The cylindrical top surface should be smooth without flash/burrs, the ejector pin mark positions at the bottom surface should has a sinking dome features to avoid burrs occuring at the bottom surface, thus as one of the meaures to keep the whole part straight.

*The flat bottom surface has to be very parallel to the axis of the cylinder-like top surface to guarantee the stable distance of overall height during the full movement way in the assembly ....Zig-Zag....Zig-Zag course......

*The width of 2,5 mm and slightly below is very well met now which is very great and the assembling of the slides is much easier now. The total height is still a little above 2,8 mm (2,82 … 2,88 from measured at the various samples). But it looks like these dimensions can be lived with and the tool is released for production. Maybe this dimension can be brought as close as possible to 2,8 by modifying the molding process parameters... Jan.9th, 2016

*Cavity number is added on the part to monitor quality.

*Application: inside part for non-contact temperature measuring device

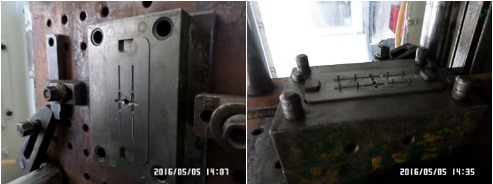

*Tooling: 1X4 cavities
